Principle
A ground source heat pump (GSHP) is a modern air conditioning system that utilizes the stable temperature characteristics of soil, rock, or water at certain underground depths. It achieves this by installing specialized heat exchangers underground to transfer heat between the building and the subsurface medium, providing heating or cooling for indoor spaces.
During summer, while supplying cool air to the indoors, the system stores waste heat underground to improve winter heating efficiency. In winter, most of the energy for indoor heating comes from the subsurface medium, absorbing soil temperature to provide thermal energy for the building.
Underground Circulation Methods
The ground heat exchanger is critical to system investment and efficiency. Heat exchange systems include open-loop, closed-loop, and hybrid configurations.
Open-Loop System

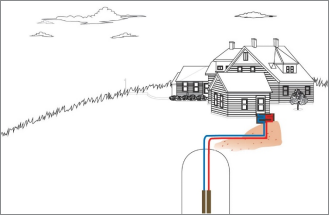

In an open-loop system, water from lakes, rivers, or vertical wells circulates through the system. Unlike closed-loop systems, the water returns to its original source or is discharged elsewhere after exchanging heat with the building.
Advantages: Simple design, low installation costs, small land occupation, and high heat transfer efficiency. However, this system is only suitable for areas with abundant water sources and permissive local regulations.
Disadvantages:
1. Water scarcity in many regions limits GSHP applications. Strict groundwater management policies in cities reduce market potential.
2. Unstable water tables due to regional, seasonal, or neighboring water usage threaten long-term reliability, especially for systems designed to last 30–50+ years.
3. Long-term use may reduce well output, and reinjection becomes challenging, requiring periodic well rehabilitation.
4. Water quality directly impacts condenser/evaporator lifespan. Sediment and impurities cause pipe clogging and fouling, necessitating regular maintenance.
5. Significant water level differences between extraction and reinjection wells increase pump power consumption.
6. Closed-loop systems avoid these issues, ensuring reliability, low maintenance, and becoming the dominant configuration.

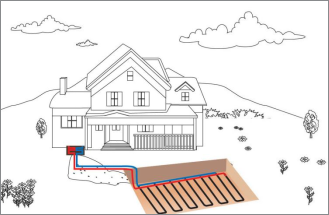

Closed-Loop System
Advantages:
- Reliability: Unaffected by external climate, GSHPs are among the most reliable HVAC systems.
- Durable Design: Few moving parts, with components buried underground or installed indoors, avoiding environmental damage.
- High-Performance Materials: Uses high-density polyethylene (HDPE) pipes with excellent weldability, flexibility (accommodating soil deformation), and thermal conductivity. Underground exchangers last up to 50 years.
- Low Maintenance: Leaks are rare. If they occur, repairs are straightforward for aboveground manifolds. Buried pipe leaks can be isolated without major system impact.
Efficiency
Based on soil-heat exchange principles, GSHPs avoid reduced heating capacity caused by frost on conventional air-source heat pumps in winter, providing 40–65°C hot water for reliable heating. In summer, they offer cooling and year-round hot water. Emission reductions exceed 75% in spring/autumn and 54% in winter.
Noise Reduction
GSHPs eliminate outdoor cooling fans, resulting in ultra-quiet operation.
Construction Efficiency
GSHPs can be installed during foundation work or before interior renovations. However:
1. Professional engineering and construction expertise are required. Poor geological understanding, design errors, or construction missteps risk significant losses.
2. If underground piping conflicts with municipal networks, pre-planning avoids interference. Systems are typically buried below 2.5–3.0 meters, minimizing conflicts.
Billing Convenience
Customized GSHP configurations match building zones and functions, enabling individual metering to reduce management costs.
Aesthetic and Environmental Benefits
GSHPs eliminate outdoor equipment, enhancing community aesthetics:
1. Discreet Design: All components are concealed indoors or in corridors/ceilings.
2. Comfort: No outdoor cooling towers or radiators reduce "heat island effects" and improve microclimate comfort.
3. Silent Operation: No noise pollution to neighbors.
4. Safety: Buried systems minimize tampering risks, particularly for children and outdoor safety.
Subsurface piping, buried deeply and insulated by soil, has negligible impact on surface temperatures, preserving lawns and vegetation.
